Garda S/90
Fondital manufactures its radiators in Italy, using just certificated raw materials. The aluminum used to create the radiators is provided directly in liquid state by Raffmetal, and respects the UNI EN 1676:1998 European legislations, with values of the chemical composition specific of EN AB 46100 and EN AB 46000 alloys.
Fondital aluminium radiators are particularly indicated for low-temperature use, using water at around 50°C, which makes best use of modern condensing boilers. Low-temperature heating using aluminium radiators combines the known advantages of rapid response and enhanced overall use of the system with higher efficiency and optimised comfort. This method is comparable to underfloor radiant panel systems, but with lower installation costs and more versatile use.

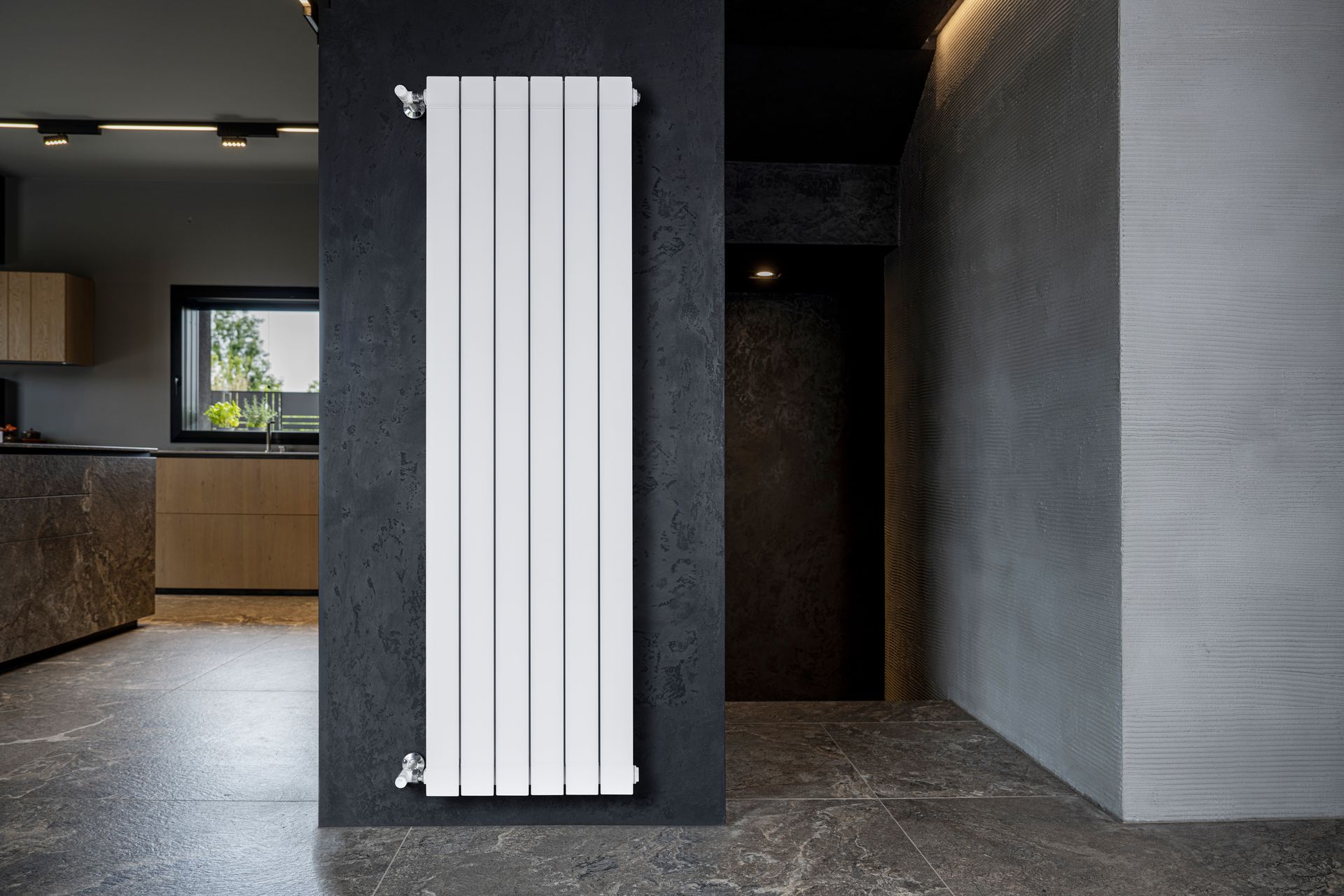

THE GARDA S/90'S main feature is the optimal space-saving ability as it extends vertically. It blends in with any style of furnishing. Available in 7 models.

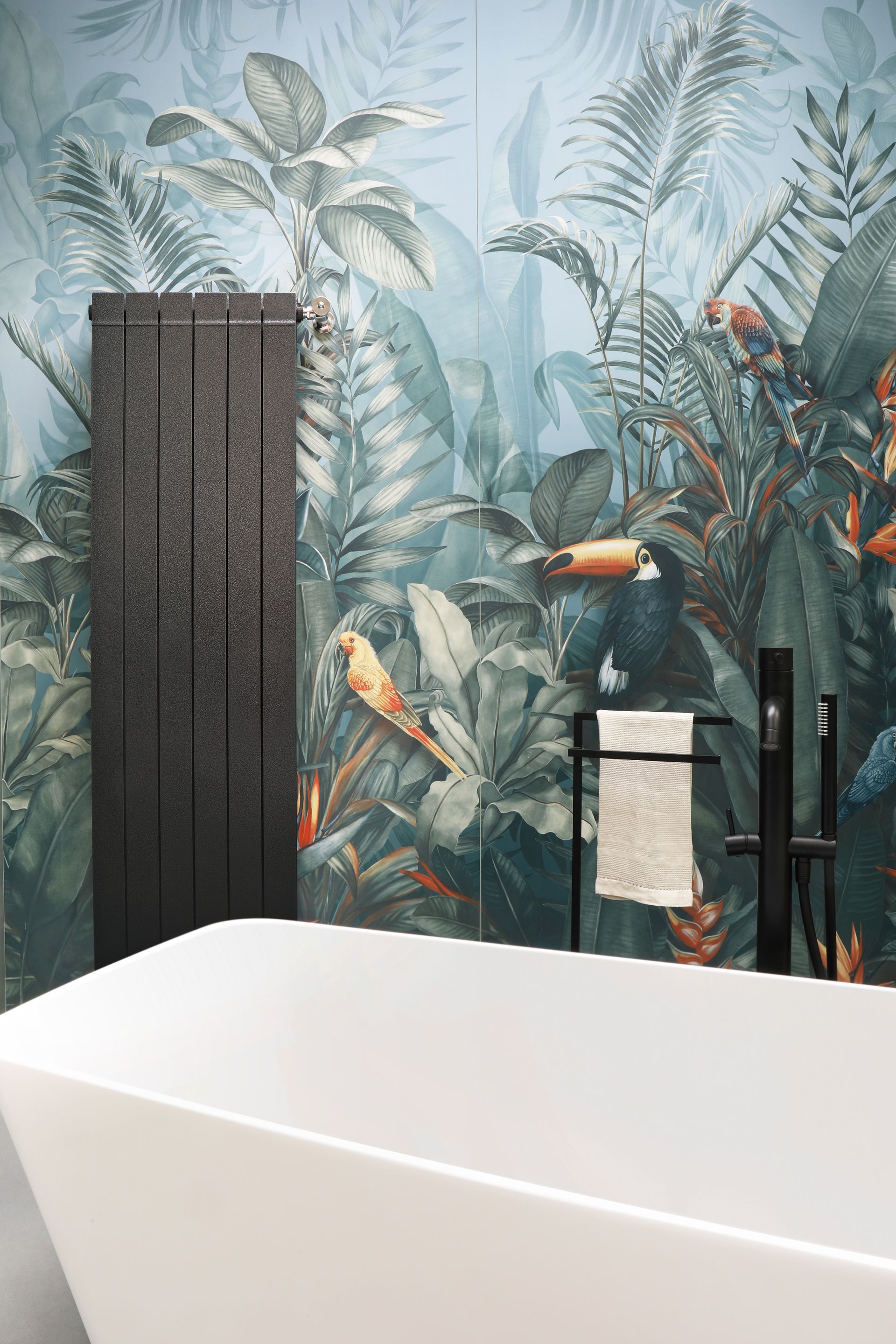

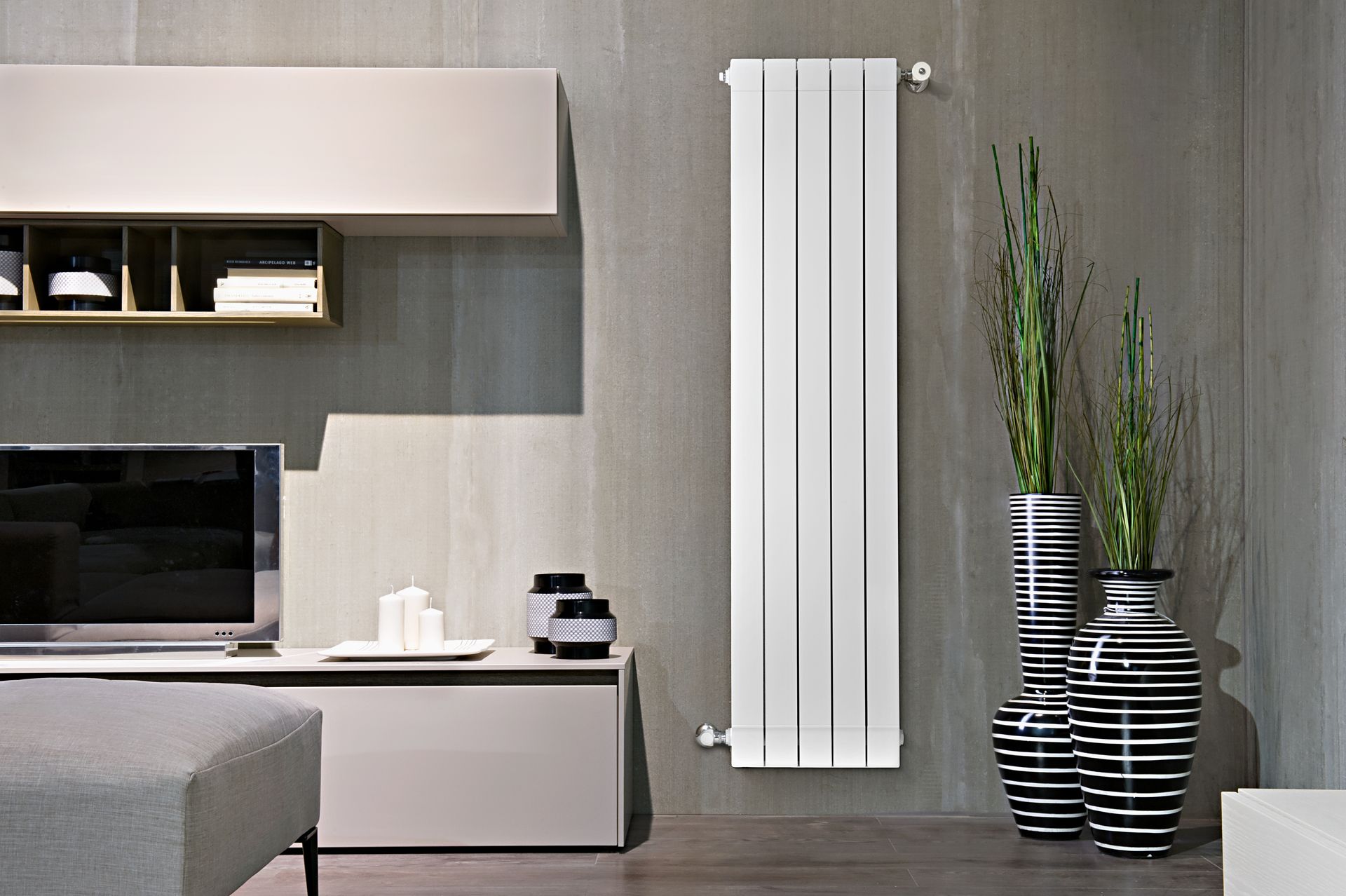

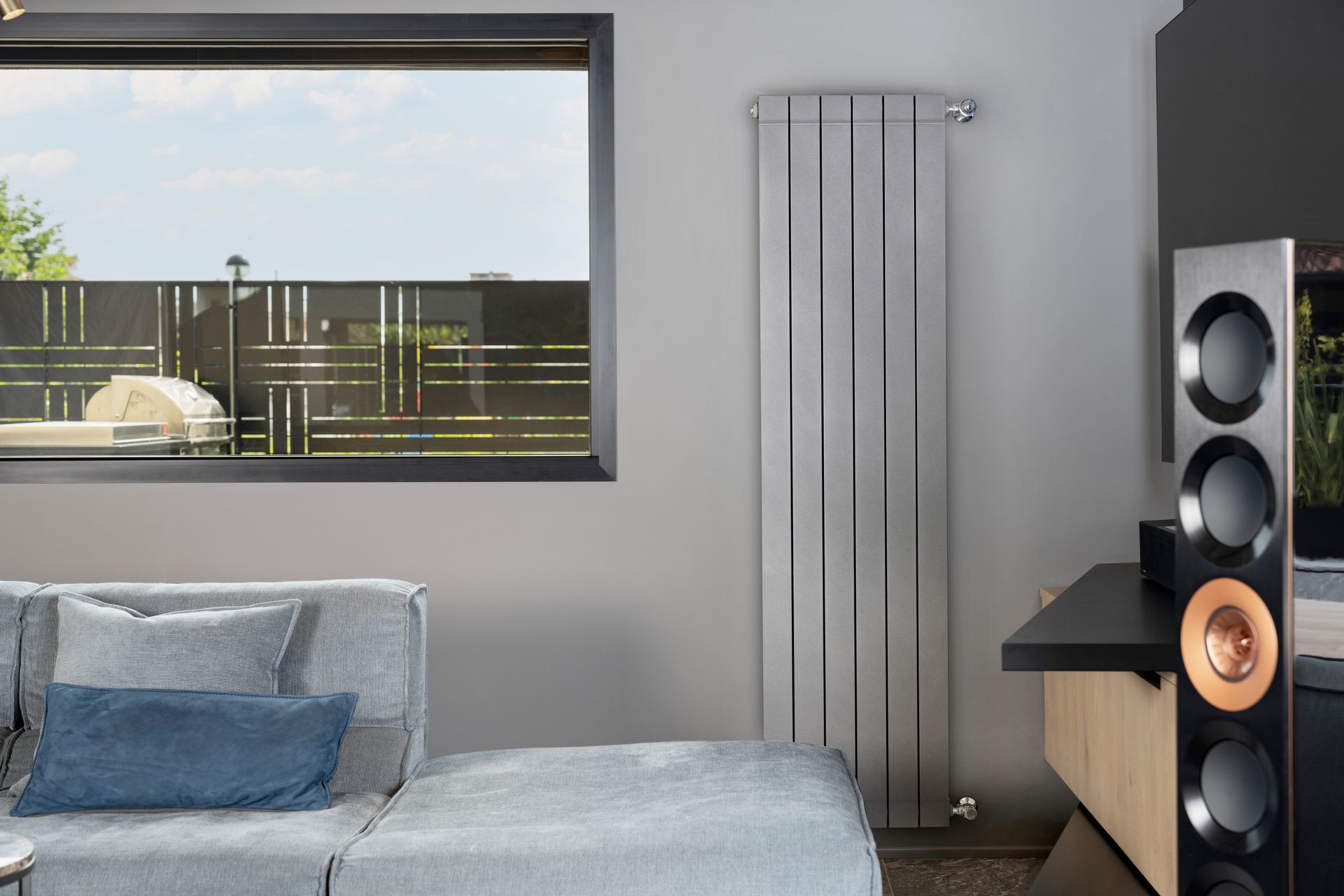

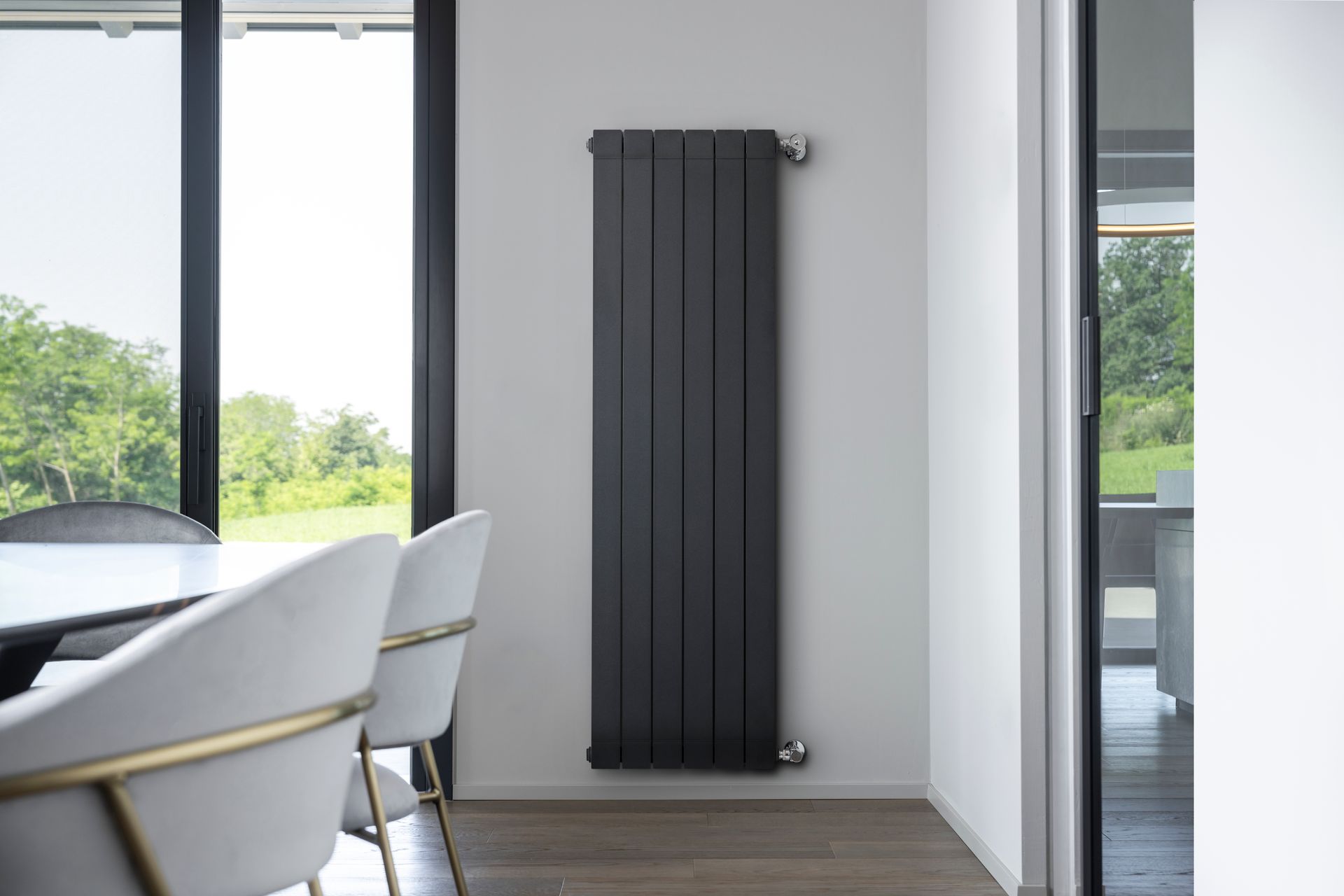

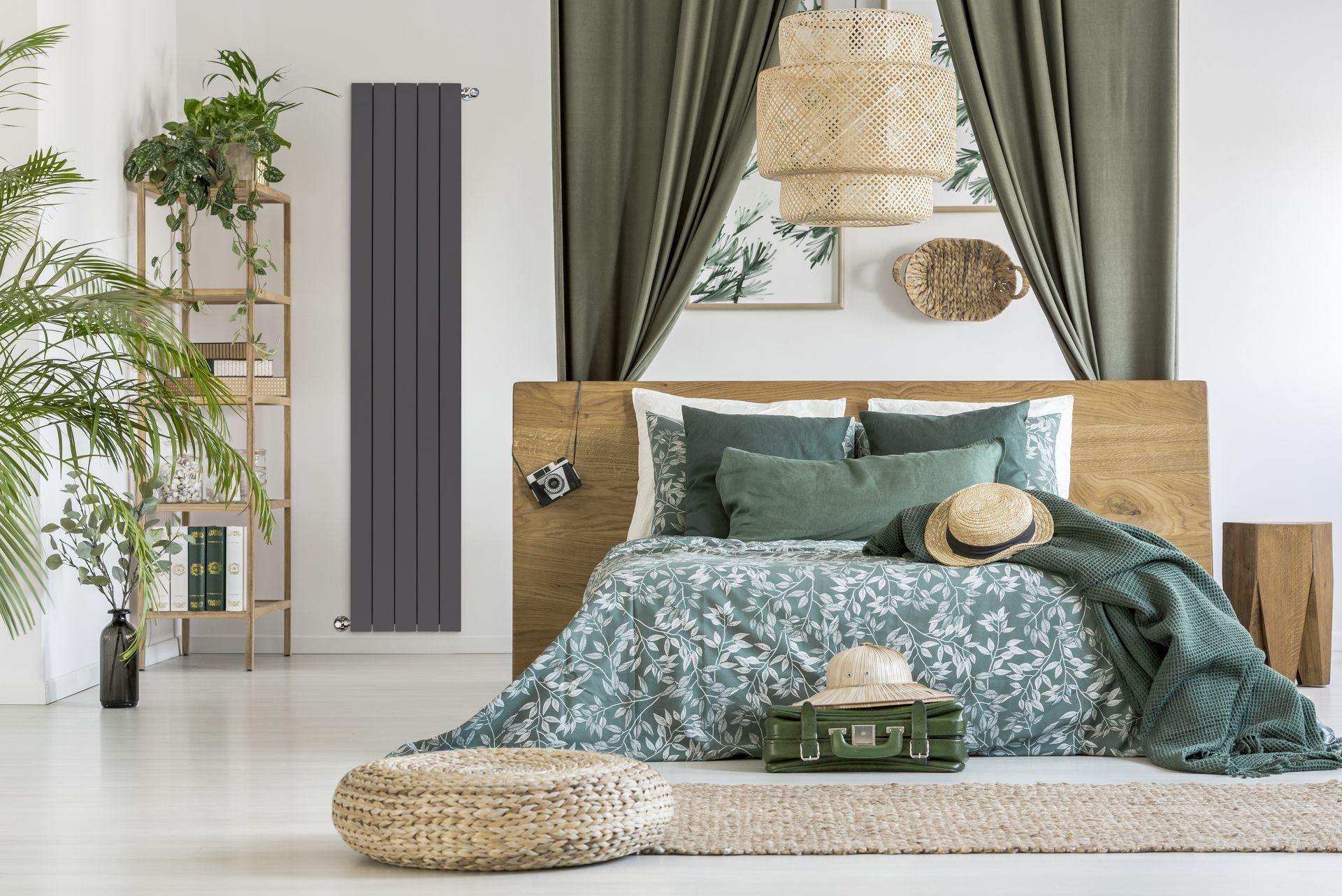

- Available In 8 colour options.
PLUS
- STANDARD SUPPLY: Blocks of 3, 4, 5, 6 sections
- Modular: perfect for any space
- Double coating for lasting finish: anaphoresis + powder coating
- Ideal for low-temperature applications
- 100% MADE IN ITALY
- Ideal for use with condensing boilers & heat pumps.
- Multiple piping connection options.
- Fondital innovations help boost heat exchange & reduce corrosion.
- Colour that won’t fade, quality guaranteed.
All GARDA S/90 models are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.

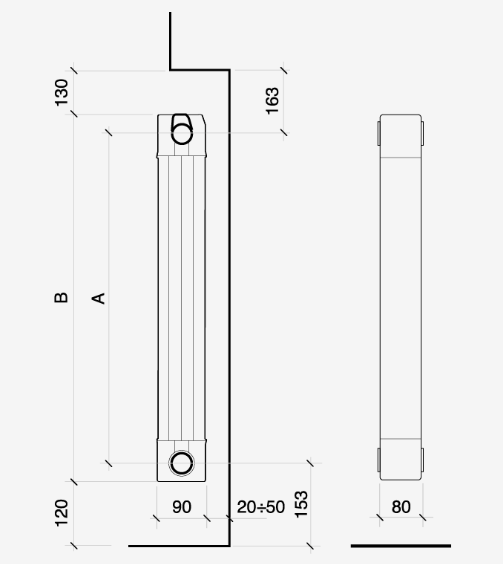

| Models | Depth (C) mm | Height (B) mm | Centre distance (A) mm | Length (D) mm | Connection diameters (inches) | Water capacity (litres/sect.) | Heat output W/sect. (ΔT 30) | Heat output W/sect. (ΔT 50) | Exponent n | Coefficient (Km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 900 | 90 | 966 | 900 | 80 | G1 | 0,43 | 90,9 | 182 | 1,3605 | 0,8886 |
| 1000 | 90 | 1066 | 1000 | 80 | G1 | 0,47 | 97,2 | 195 | 1,3630 | 0,9426 |
| 1200 | 90 | 1266 | 1200 | 80 | G1 | 0,55 | 111,3 | 223 | 1,3610 | 1,0864 |
| 1400 | 90 | 1466 | 1400 | 80 | G1 | 0,62 | 124,8 | 250 | 1,3600 | 1,2227 |
| 1600 | 90 | 1666 | 1600 | 80 | G1 | 0,70 | 135,9 | 275 | 1,3843 | 1,2260 |
| 1800 | 90 | 1866 | 1800 | 80 | G1 | 0,78 | 150 | 300 | 1,3570 | 1,4846 |
| 2000 | 90 | 2066 | 2000 | 80 | G1 | 0,86 | 159,5 | 324 | 1,3905 | 1,4083 |
Maximum working pressure: 1600 kpa (16 bar)
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the Cetiat, notified body №1623.
- All models available in: 3, 4, 5, & 6 sections.
