Air Excellent
Manifold Systems
The Air Excellent air distribution system is ductwork designed to distribute air for central mechanical ventilation systems with heat recovery used to ventilate residential and small commercial buildings.
The ventilation unit is connected to the distribution boxes using insulated mass flow ducts and silencers and the semi-rigid duct is rolled out to supply fresh air to the habitable rooms and extract stale, moist from the wet rooms.
The distribution box is an important part of the air distribution system. It controls the air capacity of the duct runs within the system. To control the air flow per duct run, adjustable air flow restrictors are mounted at the ductwork connections in the distribution box.
Discover The Full Air Excellent Distribution Box Range Below:

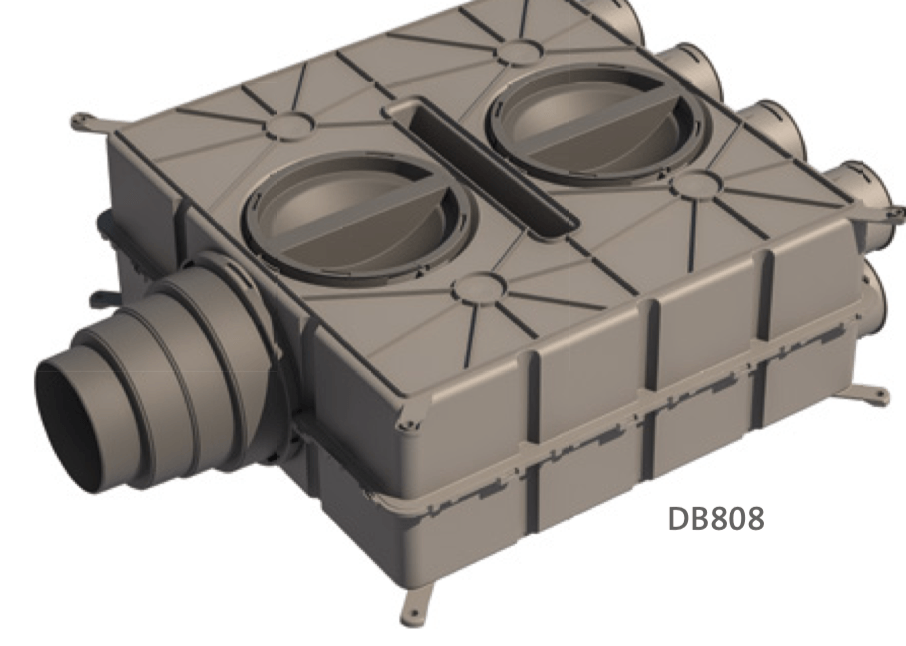

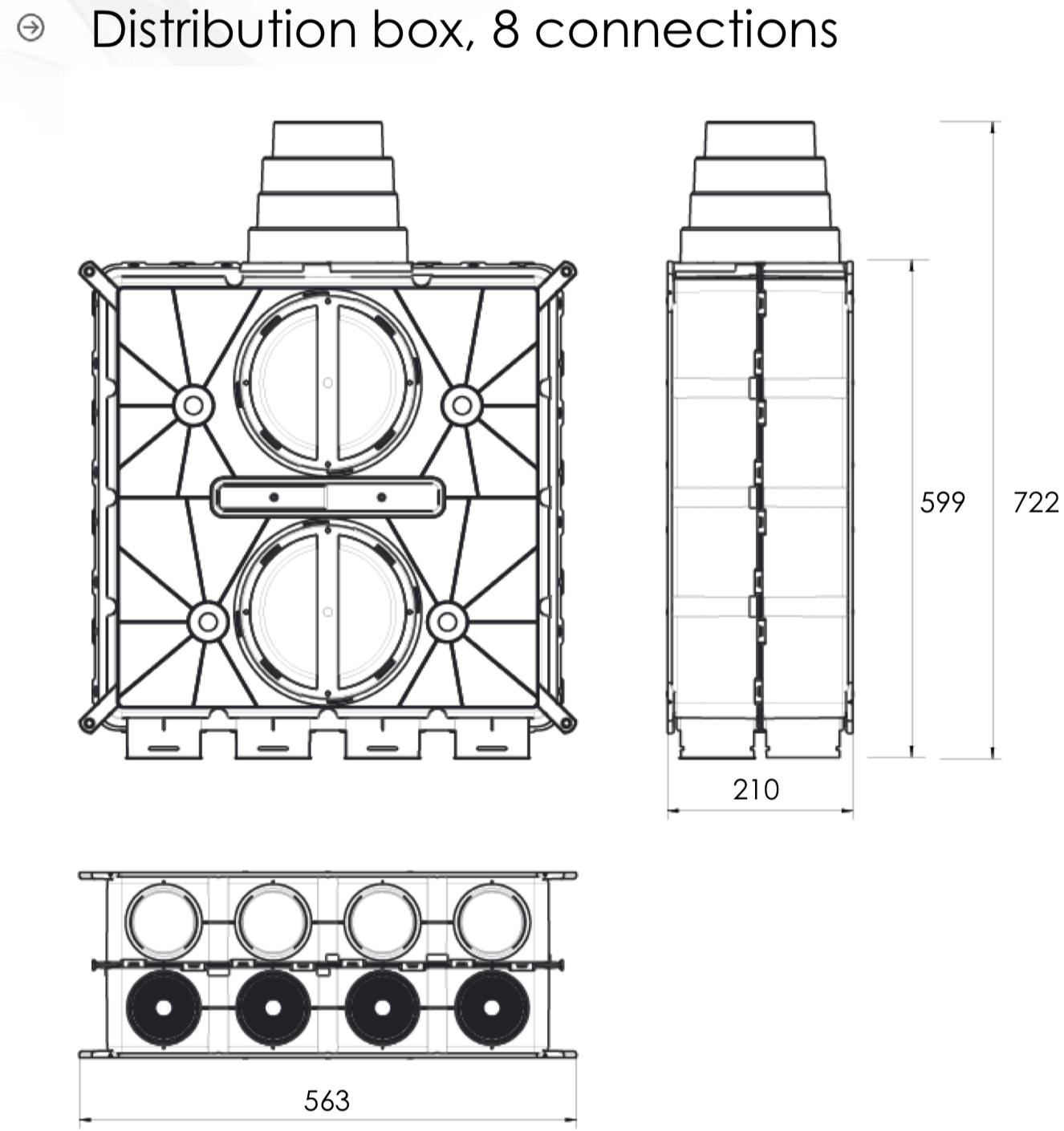

Ubbink Air Excellent 8 Port Manifold
Features & Performance
- Superior system performance due to low pressure loss.
- 8 duct run connections for all possible installations
- Airtightness class C
- Elimination of cross-talk and HRV-unit sound.
- Multiple DN180-based inspection hatches with EPDM seal-ring and bayonet-locking.
- Easy to clean the system and re-arrange the flow restrictors (renovation).
Ease of Installation
- Extremely lightweight and no sharp edges.
- Can be installed on walls, on floors, behind suspended ceilings.
- Integrated mounting brackets on both sides.
- Mass flow ductwork connection allows vertical and horizontal installations.
- Air flow restrictors are easy to place and replace due to good accessibility.
- One adaptable mass flow ductwork connection for DN125, DN150, DN160 and DN180.

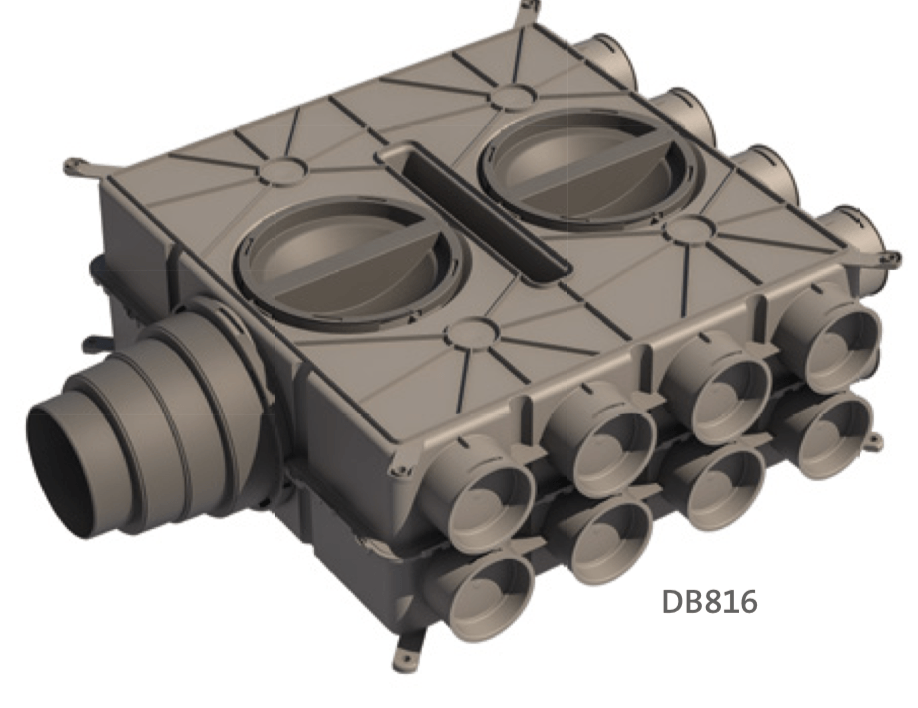

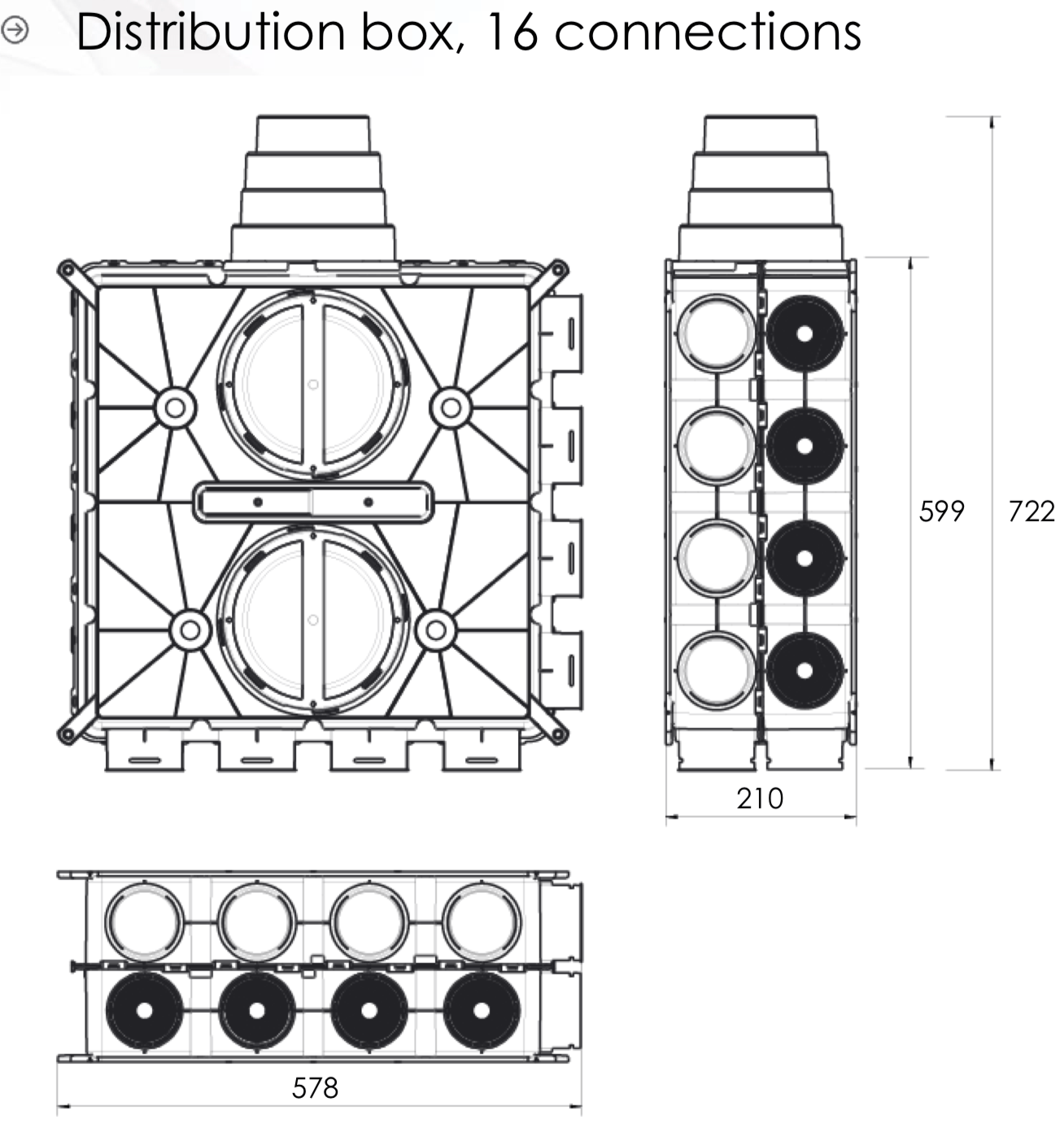

Ubbink Air Excellent 16 Port Manifold
Features & Performance
- Superior system performance due to low pressure loss.
- 16 duct run connections for all possible installations
- Airtightness class C
- Elimination of cross-talk and HRV-unit sound.
- Multiple DN180-based inspection hatches with EPDM seal-ring and bayonet-locking.
- Easy to clean the system and re-arrange the flow restrictors (renovation).
Ease of Installation
- Extremely lightweight and no sharp edges.
- Can be installed on walls, on floors, behind suspended ceilings.
- Integrated mounting brackets on both sides.
- Mass flow ductwork connection allows vertical and horizontal installations.
- Air flow restrictors are easy to place and replace due to good accessibility.
- One adaptable mass flow ductwork connection for DN125, DN150, DN160 and DN180.

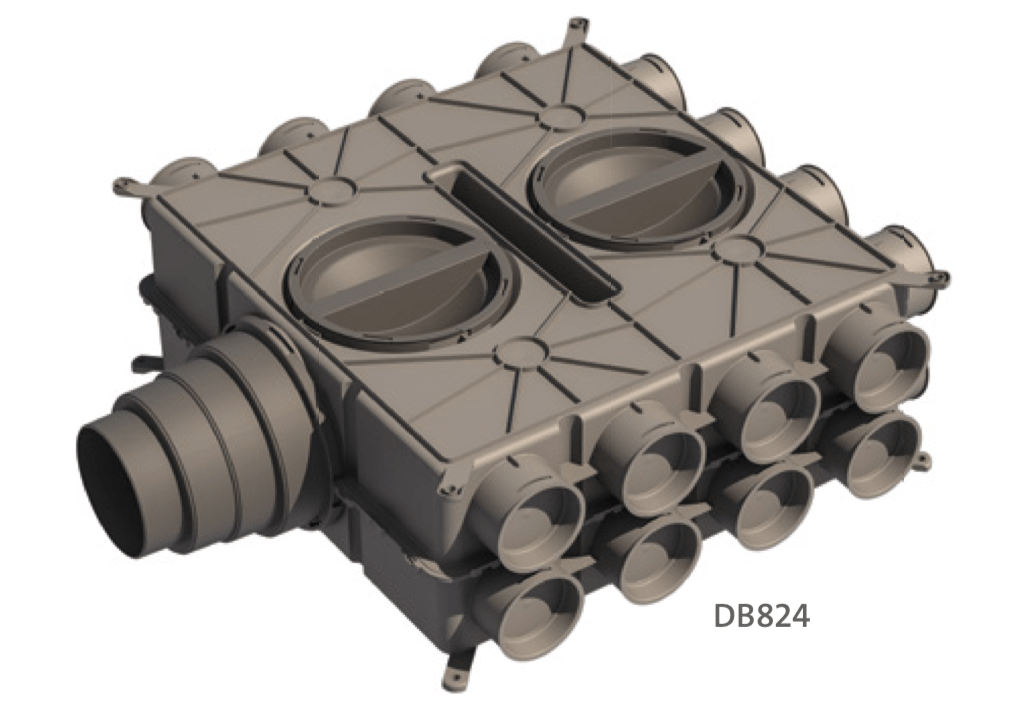

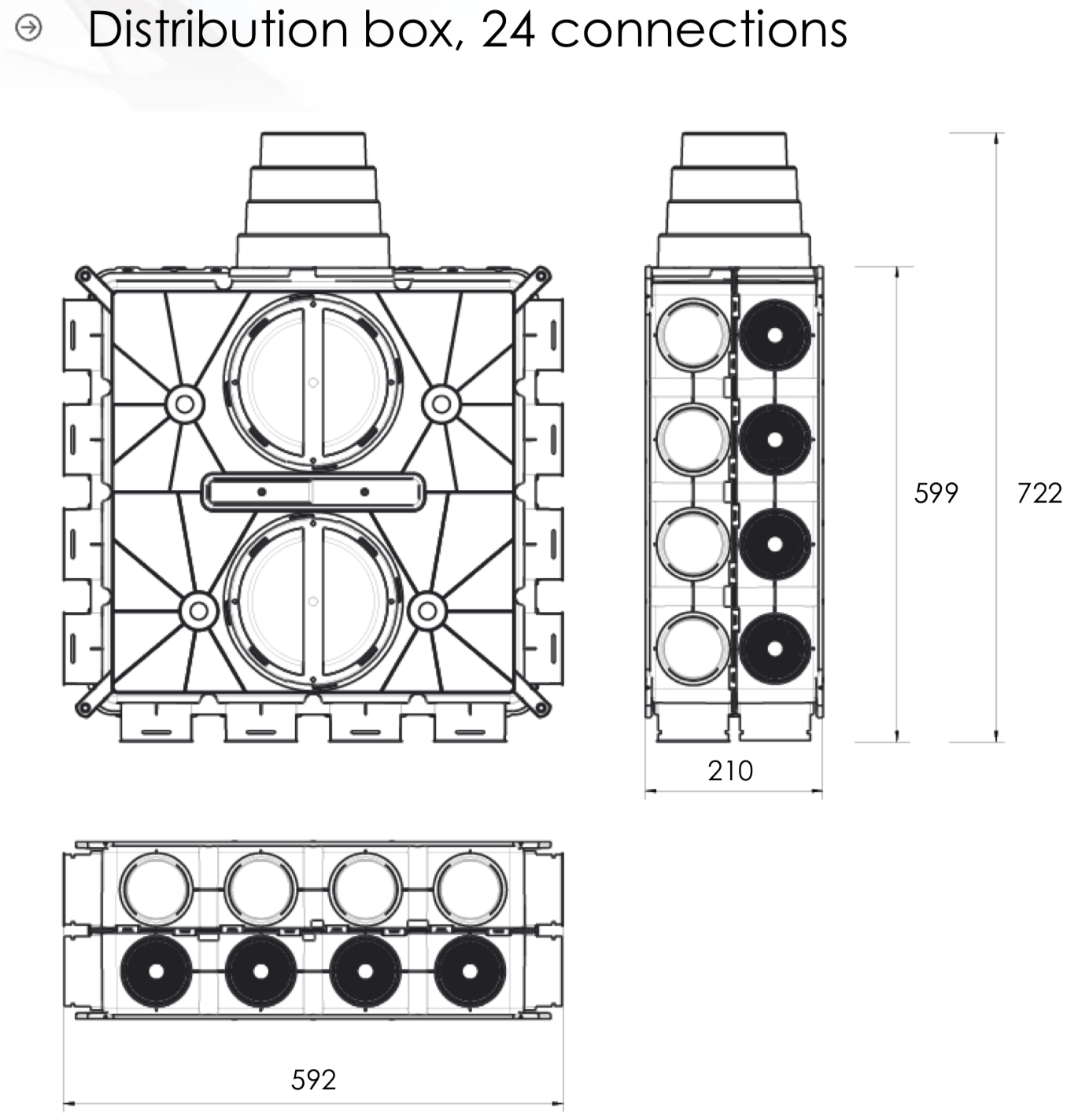

Ubbink Air Excellent 24 Port Manifold
Features & Performance
- Superior system performance due to low pressure loss.
- 24 duct run connections for all possible installations
- Airtightness class C
- Elimination of cross-talk and HRV-unit sound.
- Multiple DN180-based inspection hatches with EPDM seal-ring and bayonet-locking.
- Easy to clean the system and re-arrange the flow restrictors (renovation).
Ease of Installation
- Extremely lightweight and no sharp edges.
- Can be installed on walls, on floors, behind suspended ceilings.
- Integrated mounting brackets on both sides.
- Mass flow ductwork connection allows vertical and horizontal installations.
- Air flow restrictors are easy to place and replace due to good accessibility.
- One adaptable mass flow ductwork connection for DN125, DN150, DN160 and DN180.
