Aerfoam Mass Flow Ductwork Systems
Although not part of the Air Excellent portfolio, mass flow ductwork and silencers are essential parts of the ventilation system. Insulated mass flow ducts in air distribution systems used for ventilation, heating or cooling is often required to minimise heat loss or prevent condensation on or inside the duct. Silencers, which are placed between the ventilation unit and the distribution boxes, minimise the transfer of sound produced by the ventilation unit.
Discover The Full Mass Flow Ductwork Range Below:

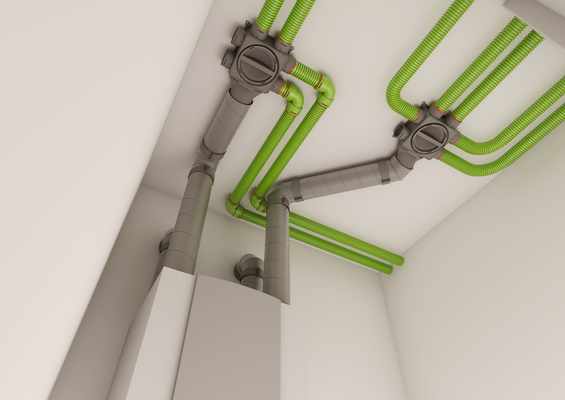

Ubbink 125mm Mass Flow Ductwork
Benefits
- Well insulated duct.
- Low pressure loss due to the very smooth inner surface.
- Light, easy to cut and pliable.
- Impact resistant (i. e. no dents).
- Doesn’t rust.
- Comes in duct lengths of 2.25m and in diameters 125, 150, 160 and 180mm.
- Mechanical connections (i. e. no tape required).
- Easy to dismantle, which makes maintenance very easy.
Features
- Material: EPE.
- Density: 30kg/m3.
- Heat transfer coefficient: 0.041 W/m.k (EN 12667).
- Wall thickness: 16mm .
- Airtightness: Class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production.

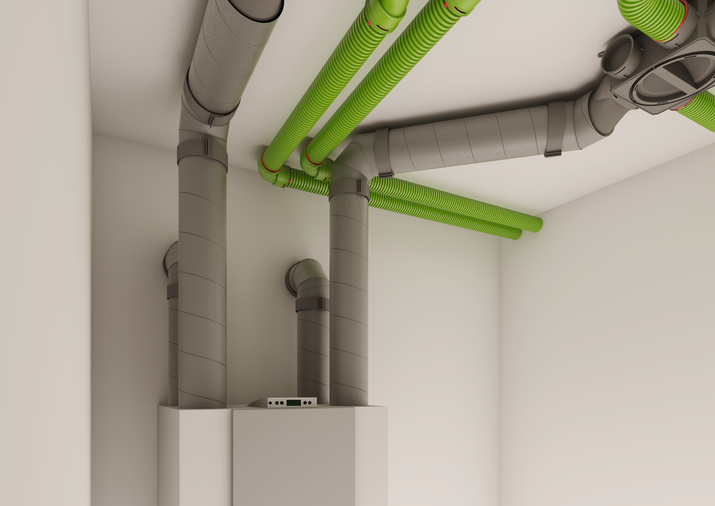

Ubbink 160mm Mass Flow Ductwork
Benefits
- Well insulated duct.
- Low pressure loss due to the very smooth inner surface.
- Light, easy to cut and pliable.
- Impact resistant (i. e. no dents).
- Doesn’t rust.
- Comes in duct lengths of 2.25m and in diameters 125, 150, 160 and 180mm.
- Mechanical connections (i. e. no tape required).
- Easy to dismantle, which makes maintenance very easy.
Features
- Material: EPE.
- Density: 30kg/m3.
- Heat transfer coefficient: 0.041 W/m.k (EN 12667).
- Wall thickness: 16mm .
- Airtightness: Class D/ATC 2 up +/- 200 Pa, which minimises fan energy use and sound production.
Ubbink 180mm Mass Flow Ductwork
Benefits
- Well insulated duct.
- Low pressure loss due to the very smooth inner surface.
- Light, easy to cut and pliable.
- Impact resistant (i. e. no dents).
- Doesn’t rust.
- Comes in duct lengths of 2.25m and in diameters 125, 150, 160 and 180mm.
- Mechanical connections (i. e. no tape required).
- Easy to dismantle, which makes maintenance very easy.
Features
- Material: EPE.
- Density: 30kg/m3.
- Heat transfer coefficient: 0.041 W/m.k (EN 12667).
- Wall thickness: 16mm .
- Airtightness: Class C.
