Winner S boasts the most advanced technology on the global market.
It is the lowest flushing system on the market at 800 mm from the finished floor, it is a product with high mechanical performance, high technological innovation, offering an attractive range of plates and a unique soundproof container.
The numerous installation possibilities at different heights, the diverse flush activations, the flexibility in positioning the control plate are the winning features of the innovative Winner S.
Just take a look at the difference specifying, choosing and installing Winner S® can make:
Innovative material of the container
- Has been designed to ensure an elevated absorption of acoustic vibrations.
Limescale resistant
- The materials used for the stop and float valve prevent limescale formation.
100% pre-assembled
- The cistern is supplied 100% factory-fitted to accelerate and simplify installation on site.
Extreme versatility of activation type
- The plate can be positioned at the front or above the cistern, with mechanical, pneumatic or electronic activation.
Easy installation
- The rotating inlet fitting simplifies installation of the cistern.
Comply with EN 681/WC
- The rubber components are in compliance with EN 681/WC, ensuring an unrivalled quality and resistance to chemical agents.
Compatible with all pan types
- The outlet valve, patented by Valsir, guarantees the thorough cleansing of any type of pan, even rimless ones.
Certified according to ISO EN 3822 ISO EN 3822
- The internal components of Winner S are certified according to ISO EN 3822, both at 3 and at 5 bar.
Sustainability - EPD
With Winner S, flush adjustment is incredibly easy and can be set at 6/3, 4.5/3 or 4/2 litres to ensure the preservation of environmental resources in full compliance with Green Building principles. That is why Winner S is one of the most efficient flush cisterns on the market.
It has received two important certificates for its high level of water-saving efficiency: the WELS (Water Efficiency Labelling and Standards) certification issued by the Australian government and theWELL (Water Efficiency LabeL) certification issued by Germany's VDMA Services.

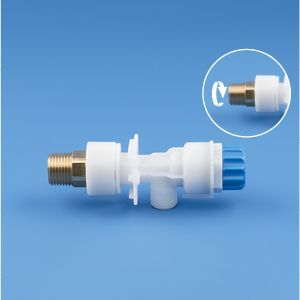

Stop Valve
Made entirely of technopolymer and pre-fitted in the cisterns to facilitate and accelerate installation operations; the system incorporates an accessible closing device to guarantee perfect performance.

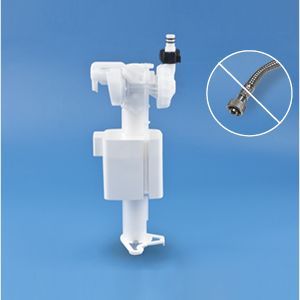

Compact Float Valve
Designed and produced to guarantee maximum reliability in all situations, it resists water hammer as great as 30 bar. The internal accessible filter and the absence of a hose allow an easy maintenance and guarantee an excellent level of silence. It is certified in accordance with EN 14124.

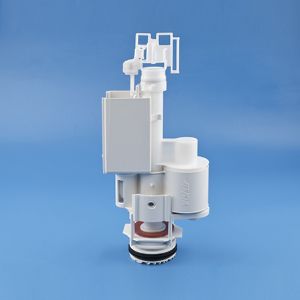

Outlet Valve
The resistance to limescale of its components, the self-regulation to the WC pans present on the market, and the blends of the seals that resist to the corrosion effect over the years, make it the most reliable valve on the market.

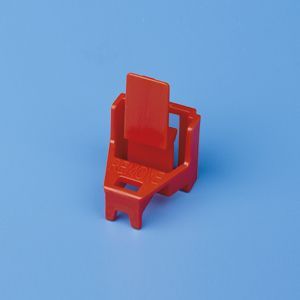

Safety Device
The device guarantees the perfect position and protection of the internal components during handling of the cistern until the control plate is installed.
Silence Without Compromise Also With The Internal Components
The Winner S internal components have been certified, according to ISO EN 3822 in silence class I, both at 3 and at 5 bar, in the prestigious TÜV LGA Institute in Nuremberg.
The components have also been certified according to the French standard CSTB NF.
The Valsir stop valve in technopolymer is the first on the market to have obtained the NF certification, with tests performed up to 50 bar.
Winner S and Tropea S are today the only flush cisterns on the market with a certified float valve and stop valve.
DISCOVER Winner S
Discover how to assemble & disassemble the Winner S WC flush cistern.
The most versatile:
Three heights, on possibility of positioning the plate at the front or top and the choice of activation's guarantee maximum installation flexibility on site. The available range, masonry, Fixsystem, Block and free-standing Block, makes it perfect for all system requirements, regardless of the wall type.

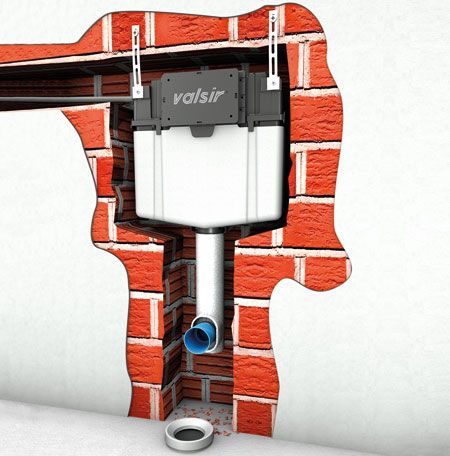

Winner S In Masonry Walls H 800 - H 880 - H 1140
The ideal solution for installations where height is limited, for example in areas under the window: thanks to its minimum installation height equal to 800 mm from the finished floor.

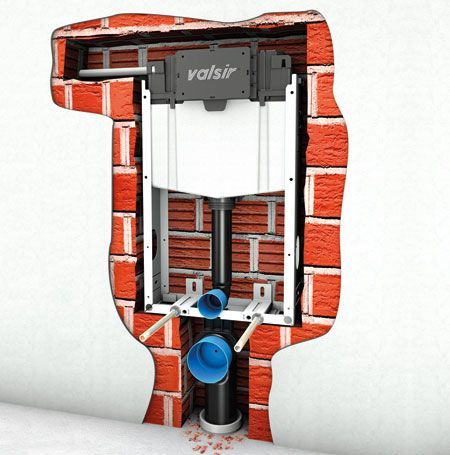

Winner S Fixed System H 800 - H 880 - H 1050
Winner S Fixsystem is the cistern with frame for wall-hung pans to be installed in brick walls.
Winner S allows the installation of a wall-hung pan starting from a reduced height of 800 mm from the finished floor, to a height of 880 and 1050 mm.

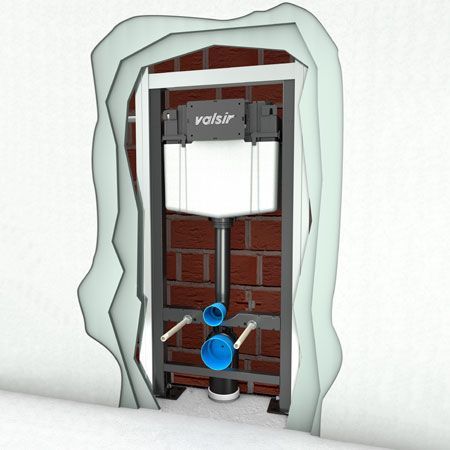

Winner S Block H 800 - H 880 - H 1140
Winner S Block is used for the installation of wall-hung pans in light walls, such as plasterboard and wood. The frame is painted to prevent corrosion and complies with the static resistance of 400 kg according to EN 997.
Winner S Block Free-Standing H 800 - H 880 - H 1140
Free-standing Winner S is used for installations of wall-hung pans when there are no load-bearing walls for anchoring the frame. The frame is anchored to the floor only and complies with static resistance of 400 kg according to EN 997.
Ariapur
Compatible with the Winner S Ariapur is the solution to guarantee the elimination of unpleasant odours ensuring clean air inside the bathroom without sacrificing design and comfort. The operation of Ariapur is simple, high-performing, extremely quiet and the unit itself is very compact.
Ariapur captures odours directly from the toilet, extracting and disposing them them before they spread to the room. At the same time, it eliminates the steam generated during the use of showers and baths through the ventilation system on the suction plate.
