Flair Series MVHR Units
A New Standard For Heat Recovery Ventilation
The Flair range we offer includes 3 unit variants with maximum ventilation capacities of 325, 400, and 600 m3/h respectively. Its aerodynamic interior design makes the Flair more effective, quieter and considerably more energy efficient than similar products. The unique constant flow fans, combined with the integrated control system, ensure a perfect balance between incoming and outgoing air.
The Brink Flair Series over a range of high-efficiency ventilation appliances that are always, in any situation, capable of supplying the correct quantity of fresh air. In combination with the new system modules for humidifying, purifying, heating and cooling, this will result in increased comfort and a healthy indoor climate That will make you enjoy living in your own home even more.
Discover the Flair Range Below:
Flair 325
| Technical Specifications: | Flair 325 |
|---|---|
| Ventilation capacity | 325 m3/h |
| Efficiency EN-13141-7 | 92.5% |
| Efficiency PHI | 91% |
| Dimensions duct seal | 160mm Dia |
| Dimensions (H x W x D) | 650 x 750 x 560 mm |
| Versions | 4/0, 2/2 Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |

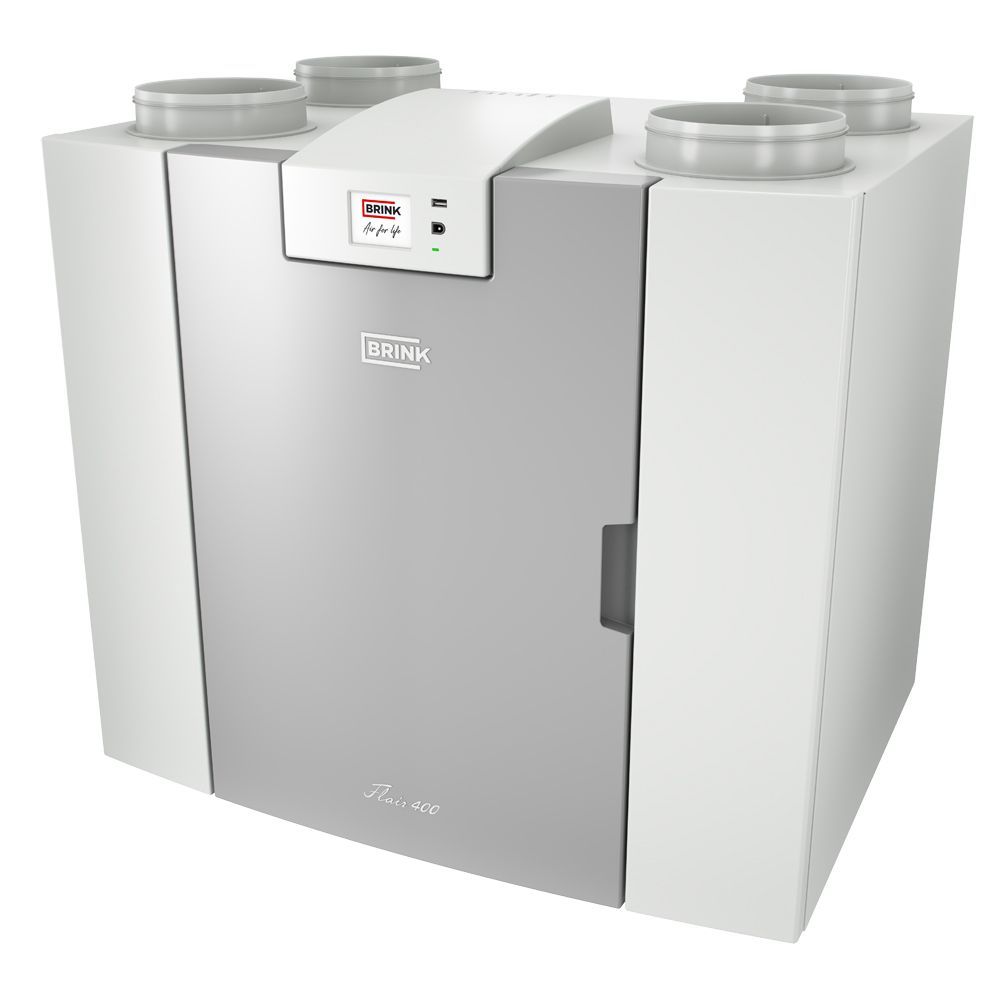

Flair 400
| Technical Specifications: | Flair 400 |
|---|---|
| Ventilation capacity | 400 m3/h |
| Efficiency EN-13141-7 | 92.1% |
| Efficiency PHI | 89% |
| Dimensions duct seal | 180mm Dia |
| Dimensions (H x W x D) | 650 x 750 x 560 mm |
| Versions | 4/0, 2/2 Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |

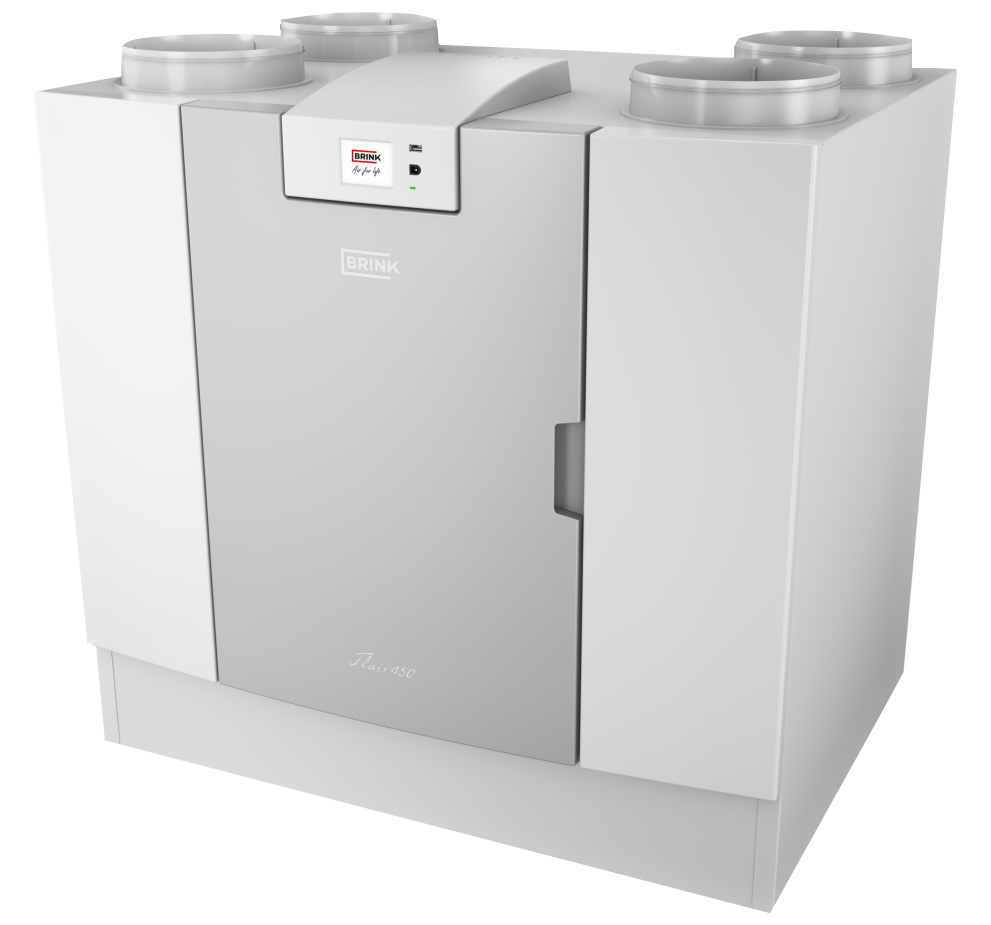

Flair 600
| Technical Specifications: | Flair 600 |
|---|---|
| Ventilation capacity | 600 m3/h |
| Efficiency EN-13141-7 | 92% |
| Efficiency PHI | 90% |
| Dimensions duct seal | 200mm Dia |
| Dimensions (H x W x D) | 800 x 850 x 661 mm |
| Versions | 4/0, 2/2 Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |
From large to small
Excellent air available
The advantages of using the Brink Flair MVHR unit in your home:
▪High Efficient plastic Heat Exchanger >90% efficiency (Holmak TST35).
▪ Passive House Certified Units.
▪ SAP Appendix Q Listed units.
▪ Constant Flow Fans (EBM) with accurate flow measurement using an integral vane anemometer.
▪ Available as both left and right handed units.
▪ Electrical pre-heater with high efficient heat transfer, intelligently controlled.
▪ Bypass with servo-motor, 100% airtight due to 2K-technology.

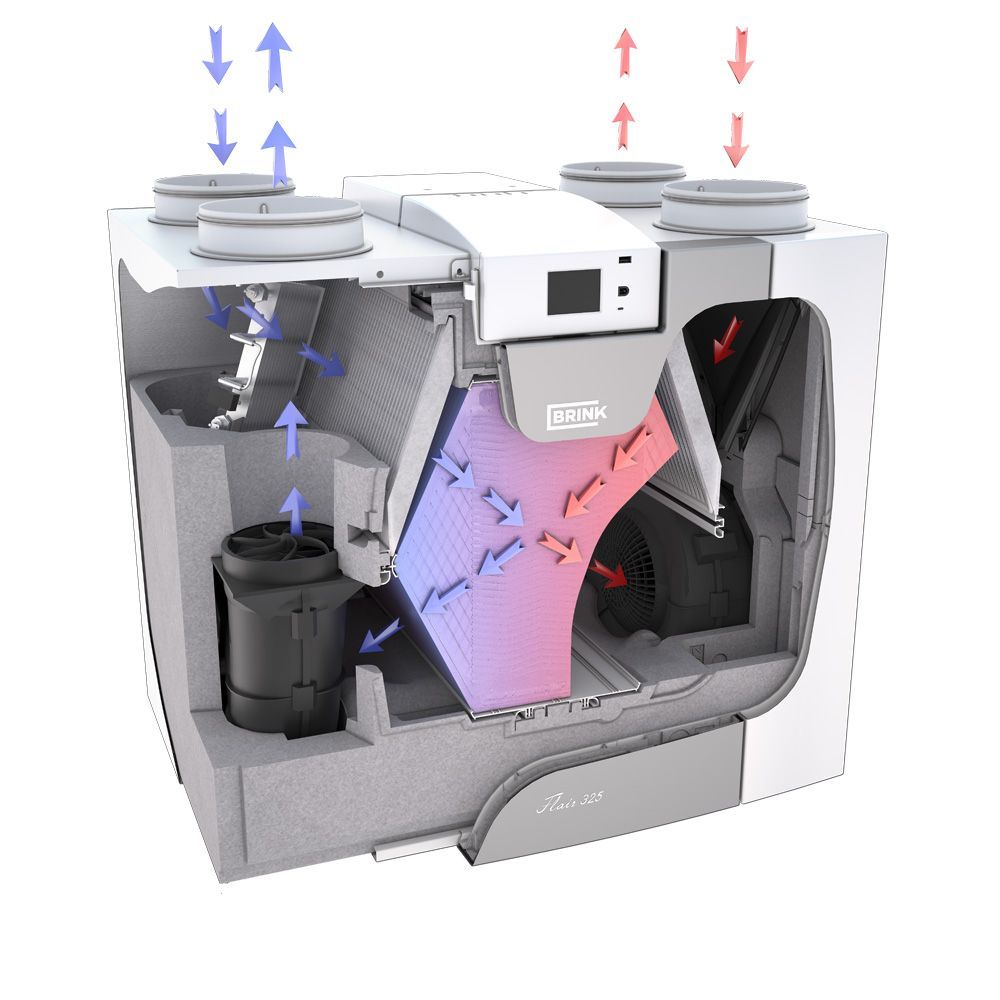

▪ Special inside ‘airflow vanes’ to guide the air over the whole heat exchanger.
▪ 4 adjustable speeds (adjustable through the TFT-Touch screen).
▪ Filter/Error signal (24V), and message on display/4-way switch.
▪ Condensate connection (fool-proof) with special Ball-Syphon (included).
▪ Ultra-low energy consumption & Sound Levels.

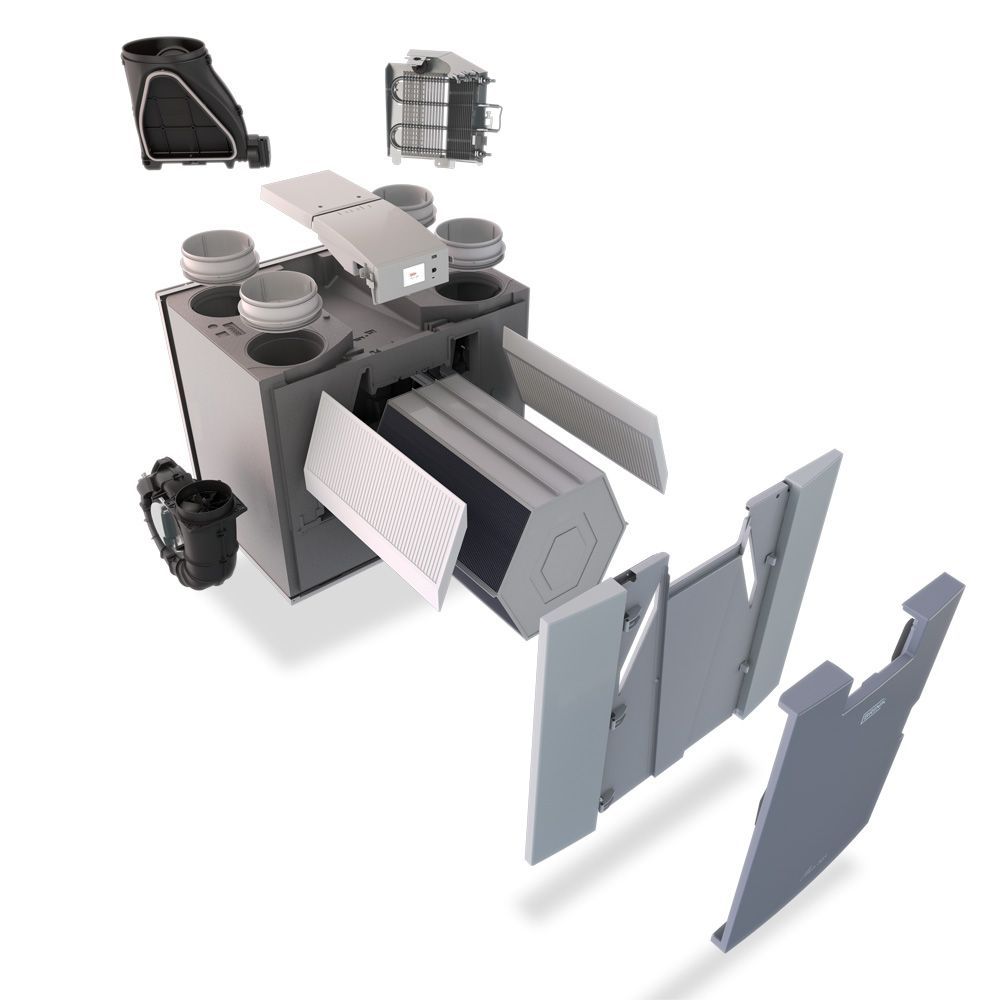

▪ All components easily removable from the front of the unit.
▪ Airtight foam insulation stays intact during maintenance and repair.
▪ Plus PCB available as a post-mounted option.
▪ Control connections – standard model: eBus – Modbus – RJ12 – USB for RF dongle – 24V power supply – 24V signal.
▪ Control connections – PLUS model : (W)LAN Internet – Analogue inputs – Digital inputs.
