Renovent Excellent Series MVHR Units
Silent & Energy-Efficient Ventilation

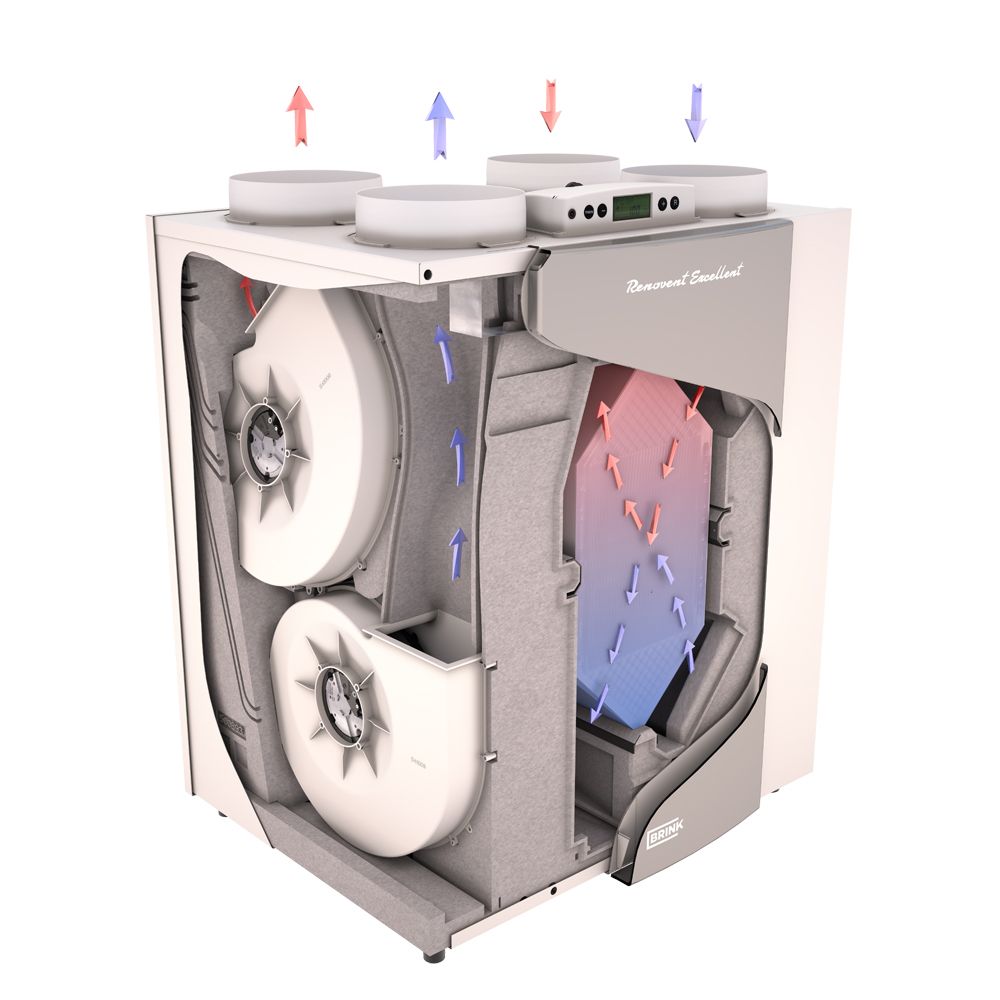

The Renovent Excellent is a mechanical ventilation heat recovery system (MVHR) that is available in versions with ventilation capacities of 180, 300, 400 and 450 m3 /h. The use of low-speed, backward curved fans and the metal casing of the Renovent Excellent makes it one of the quietest ventilation units on the market and since the Renovent Excellent is available in a number of configurations (Renovent Excellent 300/400 in 4/0, 2/2 and 3/1, Renovent Excellent 180 and 450 in 4/0), it is suitable for almost every installation.
The Renovent Excellent is tested according to EN308, EN13141-7, DIBt (except for Renovent Excellent 180), Passivhaus and NF 205. The high-efficiency heat exchanger and low electrical energy consumption mean that according to Ecodesign it achieves an energy rating of A with standard controls or A+.
Discover the Renovent Excellent range Below:

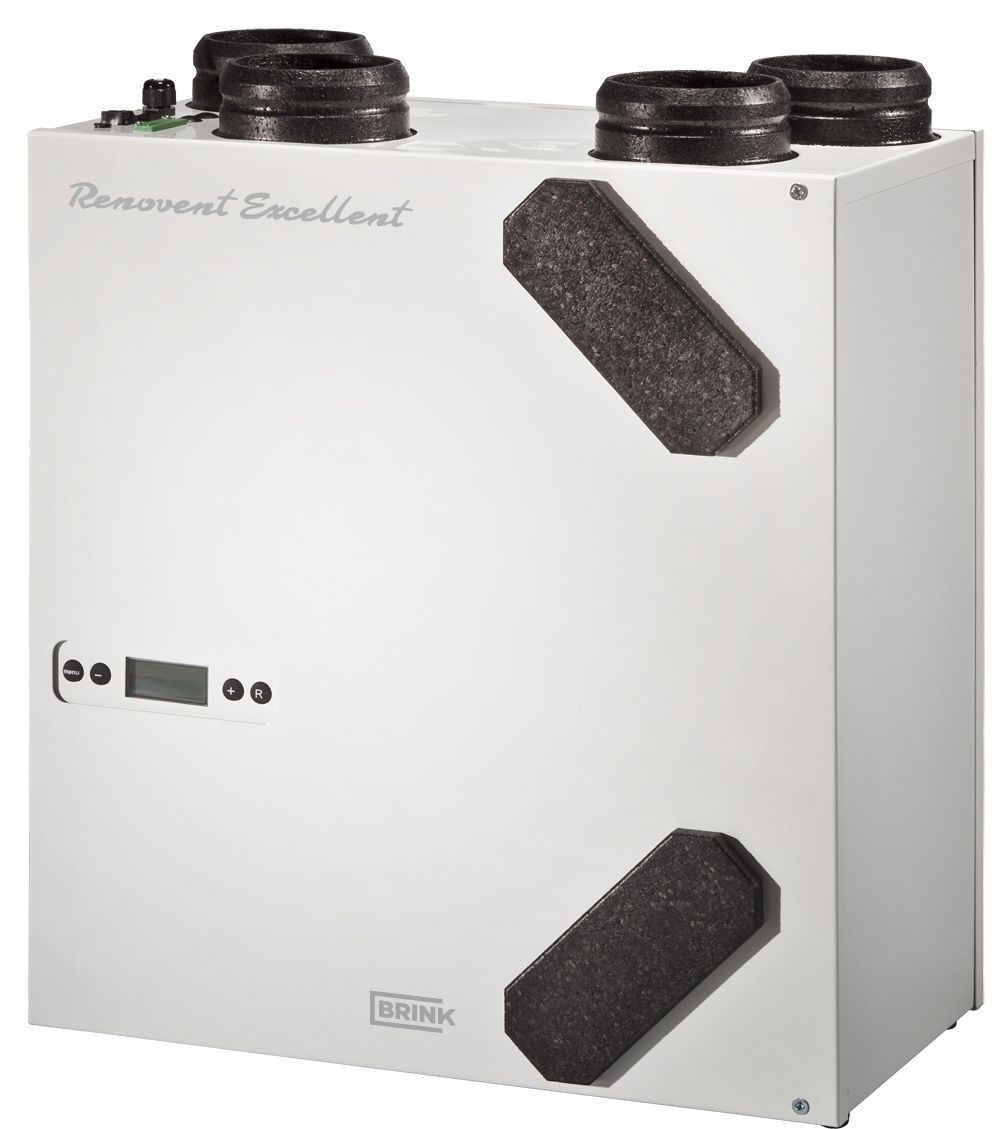

Renovent Excellent 180
| Technical Specifications: | Excellent 180 |
|---|---|
| Ventilation capacity | 180 m3/h |
| Efficiency EN-13141-7 | 82% |
| Efficiency PHI | -- |
| Dimensions duct seal | 125mm Dia |
| Dimensions (H x W x D) | 560 x 600 x 315 mm |
| Versions | 4/0, Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |

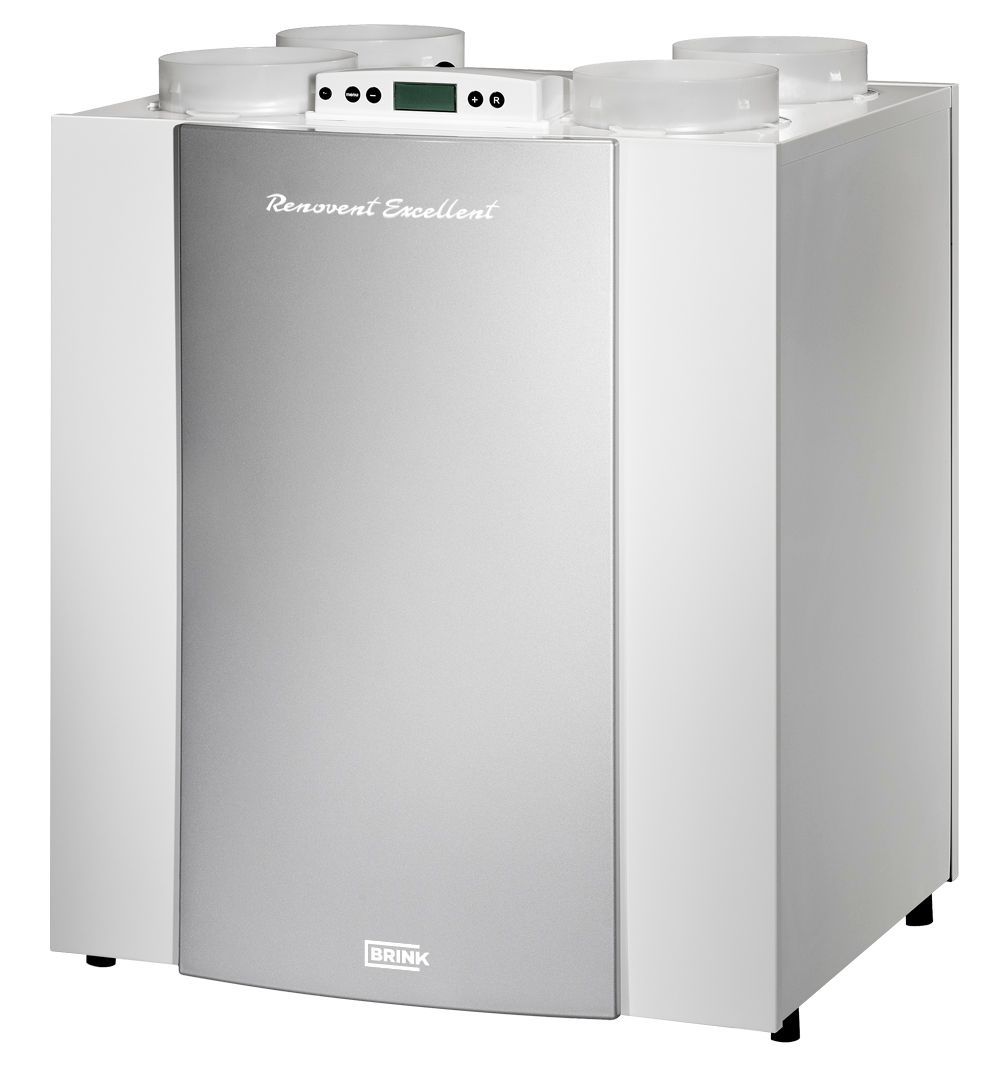

Renovent Excellent 300
| Technical Specifications: | Excellent 300 |
|---|---|
| Ventilation capacity | 300 m3/h |
| Efficiency EN-13141-7 | 86% |
| Efficiency PHI | 84% |
| Dimensions duct seal | 160mm Dia |
| Dimensions (H x W x D) | 675 x 765 x 564 mm |
| Versions | 4/0, 2/2, 3/1 Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |
Renovent Excellent 400
| Technical Specifications: | Excellent 400 |
|---|---|
| Ventilation capacity | 400 m3/h |
| Efficiency EN-13141-7 | 85% |
| Efficiency PHI | 84% |
| Dimensions duct seal | 160mm Dia |
| Dimensions (H x W x D) | 675 x 765 x 564 mm |
| Versions | 4/0, 2/2, 3/1,Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |
Renovent Excellent 450
| Technical Specifications: | Excellent 450 |
|---|---|
| Ventilation capacity | 450 m3/h |
| Efficiency EN-13141-7 | 84% |
| Efficiency PHI | -- |
| Dimensions duct seal | 180mm Dia |
| Dimensions (H x W x D) | 677 x 765 x 564 mm |
| Versions | 4/0, Both in L or R |
| Constant flow | Yes |
| Standard bypass | Yes |
| Built-in preheater | Yes |
Complete, silent and low-energy
The advantages at a glance:
▪ High Efficient plastic Heat Exchanger >90% efficiency (Holmak TST35).
▪ Passive House Certified Units.
▪ SAP Appendix Q Listed units.
▪ Constant Flow Fans (EBM) with accurate flow measurement using an integral vane anemometer.
▪ Available as both left and right handed units.
▪ High efficiency heat recovery tested under EN13141 -7.
▪ Under all conditions the hig test efficiency through application
of Constant Flow Control
▪ Standard 100% bypass.
▪ Bypass functionality for Renovent Excellent 180.
▪ EC fans guarantee a low auxiliary energy consumption.
▪ Ecodesign energy label A or A+ (with demand control] for Renovent Excellent 300 and ¢00.
